TI(BB) ADC ADS7812

ADS7812

芯片信息

型号 封装 在线定购
ADS7812P（查看） PDIP16
ADS7812U（查看） SOIC16

引脚布局

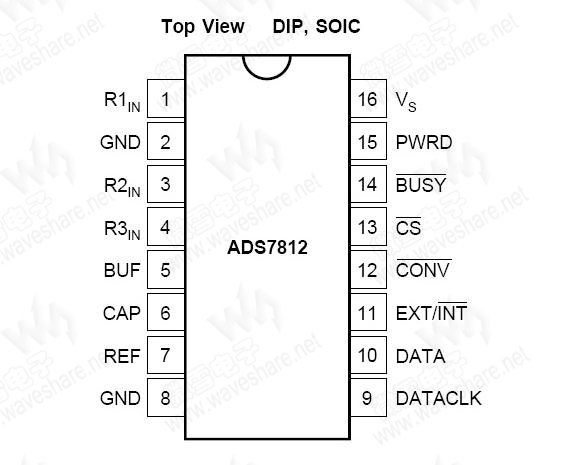

（点击图片看大图）
技术资料—— ADS7812 PDF技术资料

ADS7812 概述

The ADS7812 is a low-power, single +5V supply, 12-bit sampling analog-to-digital converter. It contains a complete 12-bit capacitor-based SAR A/D with a sample/hold, clock, reference, and serial data interface.

A flexible SPI compatible serial interface allows data to be synchronized to an internal or external clock. The ADS7812 is specified at a 40kHz sampling rate over the –40°C to +85°C temperature range. It is available in a 0.3" DIP-16 or an SO-16 package.
ADS7812 参数
ADS7812 基本参数
分辨率(Bits)   12
采样速率(max)   40 kSPS
ADS7812 其他特性
工作电压(V)   4.75～5.25
输入通道数   1
ADS7812 封装与引脚
PDIP16, SOIC16

ADS7812 特性

  • 20µs max CONVERSION TIME
  • SINGLE +5V SUPPLY OPERATION
  • PIN-COMPATIBLE WITH 16-BIT ADS7813
  • EASY-TO-USE SERIAL INTERFACE
  • 0.3" DIP-16 AND SO-16
  • ±0.5LSB max INL AND DNL
  • 72dB min SINAD
  • USES INTERNAL OR EXTERNAL REFERENCE
  • MULTIPLE INPUT RANGES
  • 35mW max POWER DISSIPATION
  • NO MISSING CODES
  • 50µW POWER DOWN MODE

ADS7812 应用

  • DATA ACQUISITION SYSTEMS
  • INDUSTRIAL CONTROL
  • TEST EQUIPMENT
  • DIGITAL SIGNAL PROCESSING
