TI(BB) DAC DAC7614

DAC7614

芯片信息

型号 封装 在线定购
DAC7614UB（查看） SOIC16

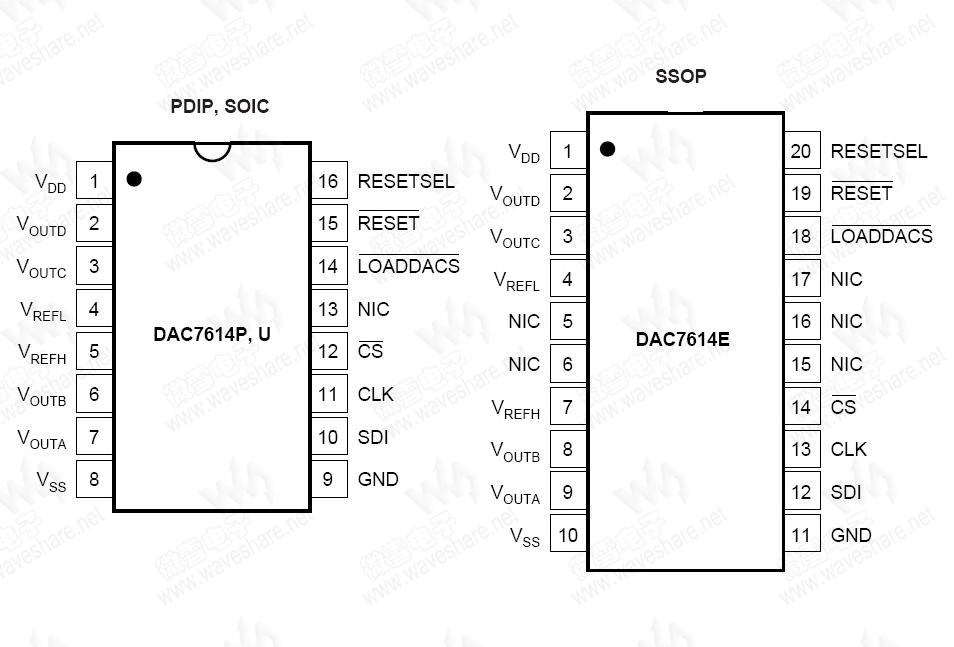

引脚布局

（点击图片看大图）
技术资料—— DAC7614 PDF技术资料

DAC7614 概述

The DAC7614 is a quad, serial input, 12-bit, voltage output digital-to-analog converter (DAC) with guaranteed 12-bit monotonic performance over the –40°C to +85°C temperature range.The DAC7614 can be powered from a single +5V supply or from dual +5V and –5V supplies.

Low power and small size makes the DAC7614 ideal for process control, data acquisition systems, and closed-loop servo-control.
DAC7614 参数
DAC7614 基本参数
分辨率(Bits)   12
采样率   89 KSPS
DAC7614 其他特性
工作电压(V)   4.75-5.25
通道数   4
DAC7614 封装与引脚
SOIC16, SSOP20

DAC7614 特性

  • LOW POWER: 20mW
  • UNIPOLAR OR BIPOLAR OPERATION
  • SETTLING TIME: 10ms to 0.012%
  • 12-BIT LINEARITY AND MONOTONICITY: –40°C to +85°C
  • USER SELECTABLE RESET TO MIDSCALE OR ZERO-SCALE
  • SECOND-SOURCE for DAC8420
  • SMALL 20-LEAD SSOP PACKAGE

DAC7614 应用

  • ATE PIN ELECTRONICS
  • PROCESS CONTROL
  • CLOSED-LOOP SERVO-CONTROL
  • MOTOR CONTROL
  • DATA ACQUISITION SYSTEMS
