STM32F746G-DISCO STM32F746NGH6开发板 评估板

产品简介

The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7 core.

The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

STM32F746G-DISCO(32F746GDISCOVERY)是ST公司推出的一款针对STM32F7系列设计的开发板。可帮助您快速探索ARM®Cortex®-M7，并轻松开发自己的应用 。

基于STM32F746NGH6设计，板载ST-Link/V2-1仿真下载器（对外仅提供SWD接口），免除您另外购买仿真器或下载器的麻烦。并且具备Arduino接口，可接入 Arduino 巨大生态系统中的各种扩展板（Shield），让您能够轻松快速增加特殊功能。

STM32F746G-DISCO由于其在音视频处理，多传感器支持，图形化，安全性和高速通信等方面的优良特性，使它的应用范围非常广泛，诸如音视频录像机，家庭防盗报警，人机界面等等。

特点

• STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
• On-board ST-LINK/V2-1 supporting USB re-enumeration capability
• Mbed-enabled (mbed.org)
• USB functions: virtual COM port, mass storage, debug port
• 4.3-inch 480x272 color LCD-TFT with capacitive touch screen
• Camera connector
• SAI audio codec
• Audio line in and line out jack
• Stereo speaker outputs
• Two ST MEMS microphones
• SPDIF RCA input connector
• Two pushbuttons (user and reset)
• 128-Mbit Quad-SPI Flash memory
• 128-Mbit SDRAM (64 Mbits accessible)
• Connector for microSD card
• RF-EEPROM daughterboard connector
• USB OTG HS with Micro-AB connectors
• USB OTG FS with Micro-AB connectors
• Ethernet connector compliant with IEEE-802.3-2002
• Five power supply options:
• ST LINK/V2-1
• USB FS connector
• USB HS connector
• VIN from Arduino connector
• External 5 V from connector
• Power supply output for external applications: 3.3 V or 5 V
• Arduino Uno V3 connectors
• Comprehensive free software including a variety of examples, part of STM32Cube package
• Supported by a wide choice of integrated development environments

开发资料

产品图片

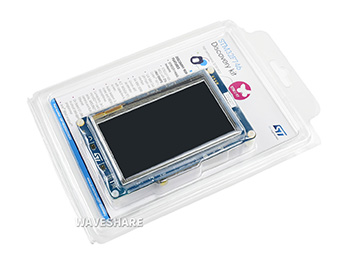

STM32F746G-DISCO 蓝色版带包装正面图

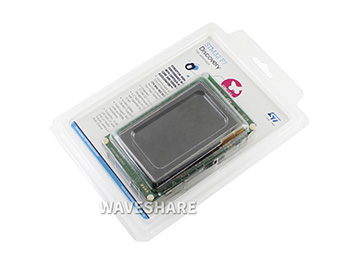

STM32F746G-DISCO 绿色版带包装正面图

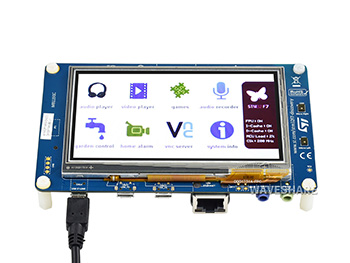

STM32F746G-DISCO 蓝色版背面

STM32F746G-DISCO 绿色版背面

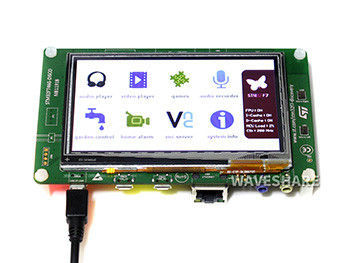

STM32F746G-DISCO 蓝色版正面

STM32F746G-DISCO 绿色版正面

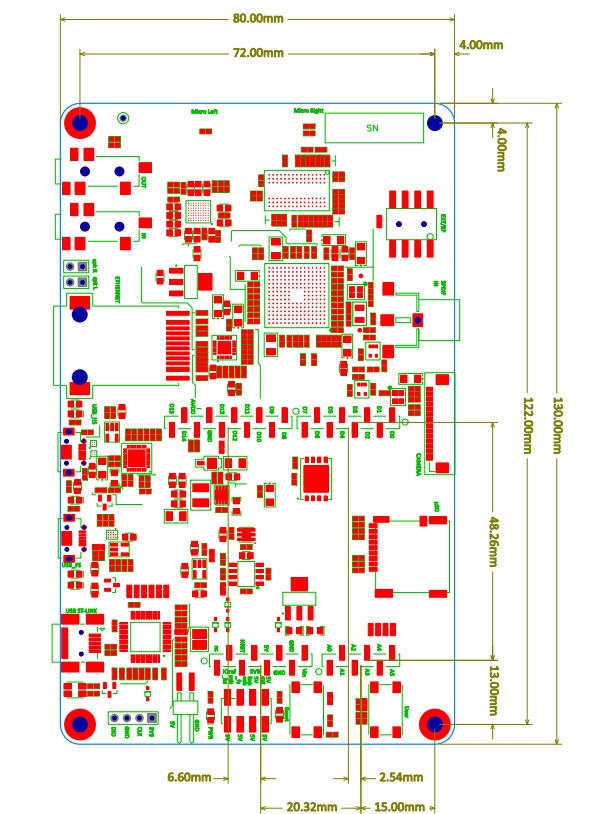

外形尺寸
