TLC274

芯片信息

型号 封装 在线定购
TLC274CDR(查看) SOIC14
TLC274CN(查看) PDIP14

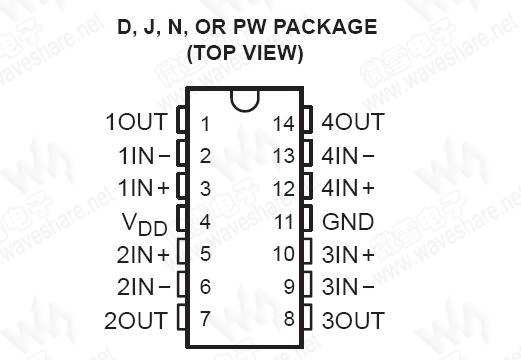

引脚布局

(点击图片看大图)
技术资料—— TLC274 PDF技术资料

TLC274 概述

The TLC274 quad operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, low noise, and speeds approaching that of general-purpose BiFET devices.

The TLC274 use Texas Instruments silicon- gate LinCMOS™ technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.

The C-suffix TLC274 are characterized for operation from 0°C to 70°C. The I-suffix TLC274 are characterized for operation from -40°C to 85°C. The M-suffix TLC274 are characterized for operation over the full military temperature range of -55°C to 125°C.

TLC274 参数
TLC274 基本参数
SR   3.6 V/μs
GBW   1.7 MHz
VIO   10 mV
IIB   600 pA
TLC274 其他特性
电源电压(单/双±)   3V~16V,
±1.5V~8V
Channels   4
工作温度   C, I, M
TLC274 封装与引脚
PDIP14, SOIC14

TLC274 特性

  • Input Offset Voltage Drift: Typically 0.1 uV/Month, Including the First 30 Days
  • Wide Range of Supply Voltages Over Specified Temperature Range:
  • 0°C to 70°C: 3 V to 16 V
  • -40°C to 85°C: 4 V to 16 V
  • -55°C to 125°C: 4 V to 16 V
  • Single-Supply Operation
  • Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix and I-Suffix Versions)
  • Low Noise: Typically 25 nV/√Hz\ at f = 1 kHz
  • Output Voltage Range Includes Negative Rail
  • High Input Impedance: 1012Ω Typ
  • ESD-Protection Circuitry
  • Small-Outline Package Option Also Available in Tape and Reel
  • Designed-In Latch-Up Immunity
