TLV0834

芯片信息

型号 封装 在线定购
TLV0834IDR(查看) SOIC14

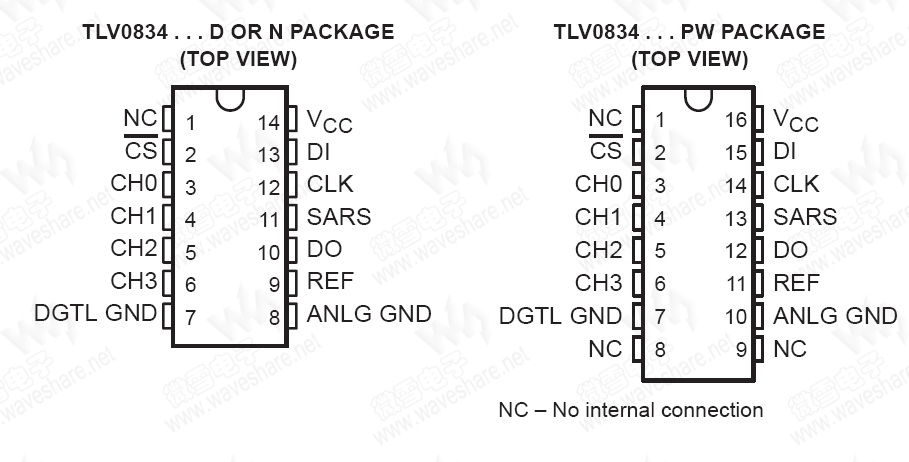

引脚布局

(点击图片看大图)
技术资料—— TLV0834 PDF技术资料

TLV0834 概述

The TLV0834 are 8-bit successive-approximation analog-to-digital converters, each with an input-configurable multichannel multiplexer and serial input/output. The serial input/output is configured to interface with standard shift registers or microprocessors. Detailed information on interfacing with most popular microprocessors is readily available from the factory.

The TLV0834C are characterized for operation from 0°C to 70°C. The TLV0834I are characterized for operation from -40°C to 85°C.

TLV0834 参数
TLV0834 基本参数
分辨率(Bits)   8
采样速率(max)   41 kSPS
TLV0834 其他特性
工作电压(V)   2.7~3.6
输入通道数   4
TLV0834 封装与引脚
PDIP14, SOIC14, TSSOP16

TLV0834 特性

  • 8-Bit Resolution
  • 2.7-V to 3.6-V VCC
  • Easy Microprocessor Interface or Stand-Alone Operation
  • Operates Ratiometrically or With VCC Reference
  • 4-Channel Multiplexer Options With Address Logic
  • Input Range 0 V to VCC With VCC Reference
  • Remote Operation With Serial Data Link
  • Inputs and Outputs Are Compatible With TTL and MOS
  • Conversion Time of 32 us at f(CLK) = 250 kHz
  • Functionally Equivalent to the ADC0834 at 3-V Supply Without the Internal Zener Regulator Network
  • Total Unadjusted Error: ±1 LSB
