| 型号 | 分辨率 | 焦距 (EFL)(mm) | 光圈 (F/NO) | 后焦距 (BFL)(mm) | 畸变 | 工作 温度 |
材质 | 质量 | 视场角 (FOV) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 像面 尺寸 |
对角 | 水平 | 垂直 | ||||||||||
 WS1842714 |
14M | 2.72 | 2.5 | 3.06 | <-21% | -30 ~ +75°C | 8G+IR | 9g | 1/2.3" | 184.6° | 140.0° | 102.6° | |
 WS1053516 |
16M | 3.56 | 2.5 | 5.92 | <-17.6% | -30 ~ +70°C | 4G3P+IR | 7g | 1/2.3" | 105.0° | 88.0° | 70.0° | |
| 1/2.5" | 98.2° | 87.7° | 53.3° | ||||||||||
 WS1132712 |
12M | 2.70 | 2.8 | 4.97 | <-1.5% | -30 ~ +70°C | 5G2P+IR | 6g | 1/2.3" | 113.0° | 100.0° | 82.7° | |
| 1/2.5" | 108.0° | 97.0° | 67.0° | ||||||||||
| 1/2.8" | 101.0° | 92.8° | 60.3° | ||||||||||
 WS1603212 |
12M | 3.20 | 2.0 | 6.14 | <-64% | -40 ~ +105°C | 8G+IR | 28g | 1/1.7" | 160.0° | 131.0° | 99.0° | |
| 1/1.8" | 153.6° | 129.0° | 88.0° | ||||||||||
| 1/2.8" | 136.0° | 113.5° | 83.0° | ||||||||||

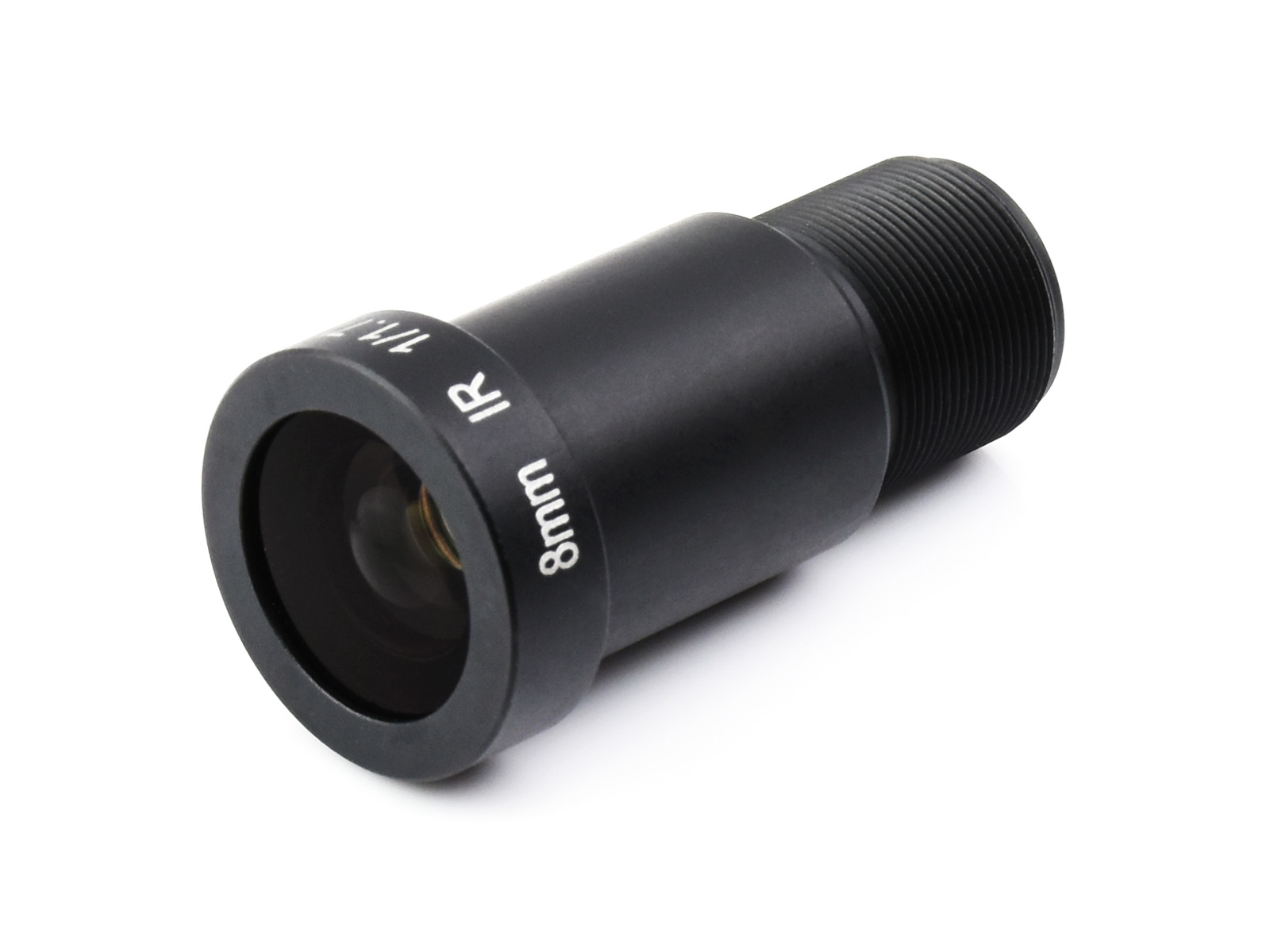

 WS0698012 |
12M | 8.00 | 1.8 | 10.02 | <-15.68% | -20 ~ +60°C | 8G+IR | 12g | 1/1.8" | 69.5° | 55.6° | 40.3° | |
| 1/2.5" | 50.7° | 44.4° | 32.6° | ||||||||||
| 1/3.0" | 43.0° | 34.7° | 26.4° | ||||||||||
 WS0202505 |
5M | 25.00 | 1.7 | 5.20 | <0.30% | -20 ~ +80°C | 6G+IR | 9g | 2/3.0" | 20.2° | 15.1° | - | |
| 1/1.8" | 16.5° | 12.4° | - | ||||||||||
| 1/2.0" | 14.5° | 10.5° | - | ||||||||||
| 以上镜头螺纹尺寸为：M12*P0.5 | |||||||||||||
