运算放大器 OPA549

OPA549

芯片信息

型号 封装 在线定购
OPA549S（查看） Power Package
OPA549T（查看） TO-220

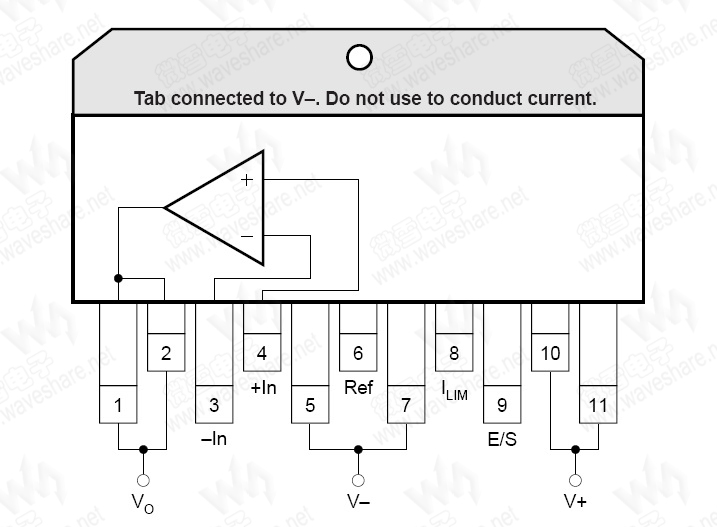

引脚布局

（点击图片看大图）
技术资料—— OPA549 PDF技术资料

OPA549 概述

The OPA549 is a low-cost, high-voltage/high-current operational amplifier ideal for driving a wide variety of loads. This laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current. The OPA549 operates from either single or dual supplies for design flexibility. The input common-mode range extends below the negative supply.

The OPA549 is available in an 11-lead power package. Its copper tab allows easy mounting to a heat sink for excellent thermal performance. Operation is specified over the extended industrial temperature range, –40°C to +85°C.
OPA549 参数
OPA549 基本参数
SR   9 V/μs
GBW   0.9 MHz
VIO   5 mV
IIB   500 nA
OPA549 其他特性
电源电压(单/双±)   8V～60V,
±4V～30V
Channels   1
工作温度   −40℃ ～ 125℃
OPA549 封装与引脚
Power Package, TO-220

OPA549 特性

  • HIGH OUTPUT CURRENT:
    8A Continuous
    10A Peak
  • WIDE POWER-SUPPLY RANGE:
    Single Supply: +8V to +60V
    Dual Supply: ±4V to ±30V
  • WIDE OUTPUT VOLTAGE SWING
  • FULLY PROTECTED:
    Thermal Shutdown
    Adjustable Current Limit
  • OUTPUT DISABLE CONTROL
  • THERMAL SHUTDOWN INDICATOR
  • HIGH SLEW RATE: 9V/μs
  • CONTROL REFERENCE PIN
  • 11-LEAD POWER PACKAGE

OPA549 应用

  • VALVE, ACTUATOR DRIVERS
  • SYNCHRO, SERVO DRIVERS
  • POWER SUPPLIES
  • TEST EQUIPMENT
  • TRANSDUCER EXCITATION
  • AUDIO POWER AMPLIFIERS
