支持 Raspberry Pi OS,十点触控,免驱
支持 Ubuntu / Kali / WIN10 IoT,单点触控,免驱
支持 Retropie,免驱

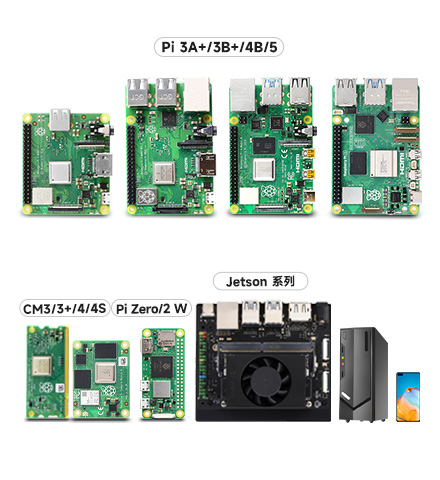

支持树莓派所有版本
支持 Jetson Nano / TX2 / Xavier NX / Orin系列主板
支持 Ubuntu,单点触控,免驱

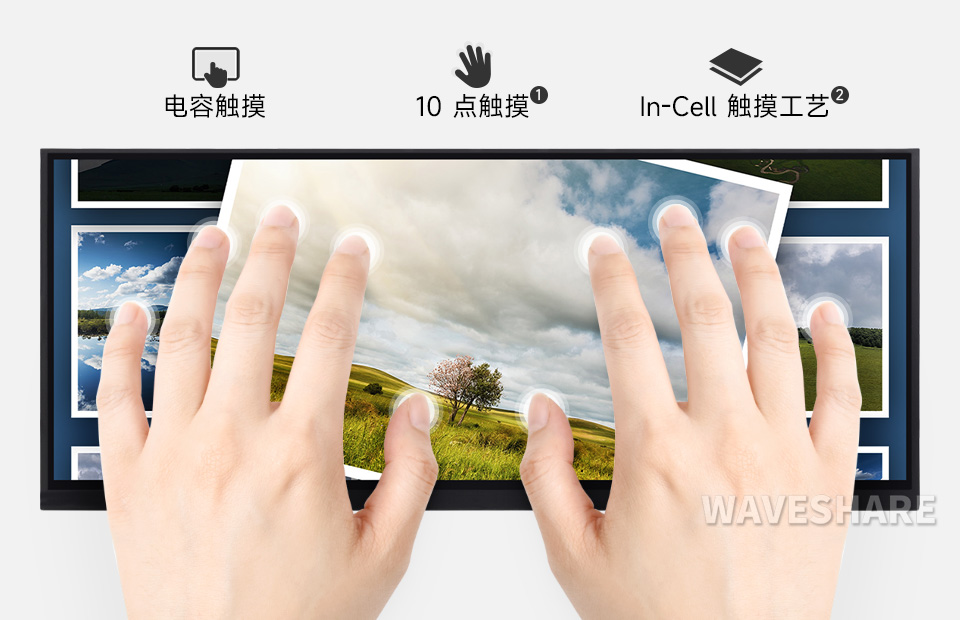

支持 Windows 11 / 10 / 8.1 / 8 / 7,十点触控,免驱

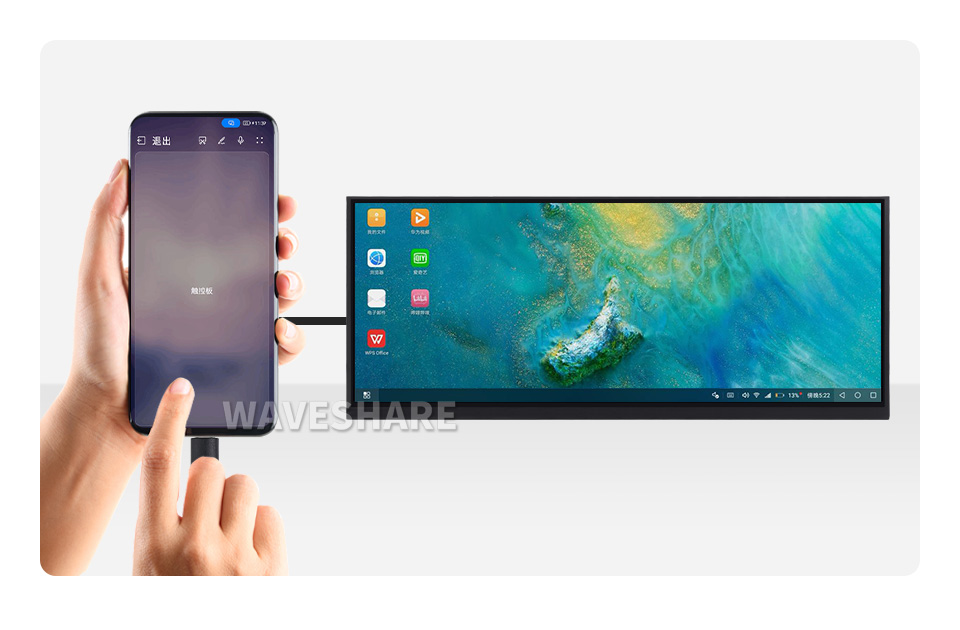

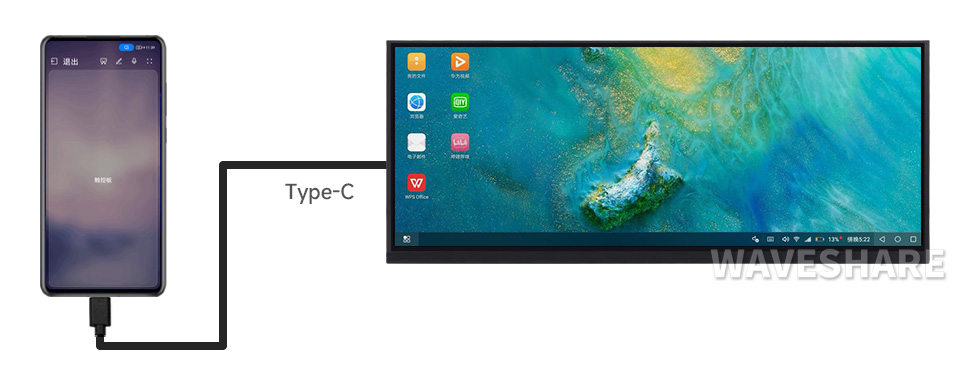

支持华为、三星、OPPO等 (常用于投屏)
|
|
型号 | 显示 | 触摸 | 音频 | 主流设备支持 | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
分辨率 | 显示接口 | 显示面板 | 可视 角度 |
触摸 类型 |
触摸 接口 |

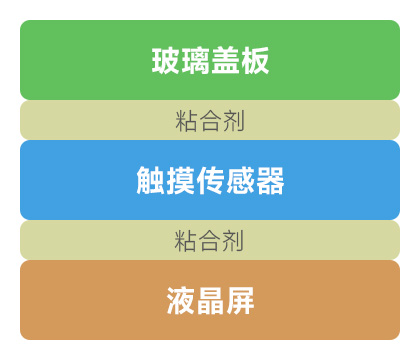

触摸面板 | 全贴合 工艺 |
喇叭 | 信号 输出 |
树莓派 | Jetson Nano | 计算机 | |
SPI显示屏 |
|||||||||||||
2.8inch RPi LCD (A) | 320×240 | SPI | TFT | - | 电阻 | SPI | - | - | - | - | √ | - | - |
3.2inch RPi LCD (B) | 320×240 | SPI | TFT | - | 电阻 | SPI | - | - | - | - | √ | - | - |
3.5inch RPi LCD (A) | 480×320 | SPI | TFT | - | 电阻 | SPI | - | - | - | - | √ | - | - |
3.5inch RPi LCD (B) | 480×320 | SPI | IPS | 160° | 电阻 | SPI | - | - | - | - | √ | - | - |
3.5inch RPi LCD (C) | 480×320 | 高速SPI | TFT | - | 电阻 | SPI | - | - | - | - | √ | - | - |
4inch RPi LCD (A) | 480×320 | SPI | TFT | - | 电阻 | SPI | - | - | - | - | √ | - | - |
DPI显示屏 | |||||||||||||
2.8inch DPI LCD | 480×640 | DPI | IPS | 160° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
3.5inch DPI LCD | 640×480 | DPI | IPS | 170° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
4inch DPI LCD (C) | 720×720 | DPI | IPS | 170° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
5inch DPI LCD | 800×480 | DPI | IPS | 160° | - | - | - | - | - | - | √ | - | - |
7inch DPI LCD | 1024×600 | DPI | IPS | 170° | - | - | - | - | - | - | √ | - | - |
DSI显示屏 | |||||||||||||
2.8inch DSI LCD | 480×640 | DSI | IPS | 160° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
3.4inch DSI LCD (C) | 800×800 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
4inch DSI LCD | 480×800 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
4inch DSI LCD (C) | 720×720 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
4.3inch DSI LCD | 800×480 | DSI | IPS | 160° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
4.3inch DSI LCD (带外壳) | 800×480 | DSI | IPS | 160° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
4.3inch DSI QLED | 800×480 | DSI | IPS(QLED) | 160° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
5inch DSI LCD | 800×480 | DSI | TFT | - | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
5inch DSI LCD (B) | 800×480 | DSI | IPS | 160° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
5inch DSI LCD (C) | 1024×600 | DSI | IPS | 178° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
5inch DSI LCD (D) | 720×1280 | DSI | IPS | 178° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
6.25inch DSI LCD | 720×1560 | DSI | IPS | 178° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
7inch DSI LCD | 800×480 | DSI | TFT | - | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (with cam) | 800×480 | DSI | TFT | - | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (with cam and case) | 800×480 | DSI | TFT | - | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (with case A) | 800×480 | DSI | TFT | - | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (B) | 800×480 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (B) (with case A) | 800×480 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (C) | 1024×600 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (C) (with case A) | 1024×600 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
7inch DSI LCD (E) | 1280×800 | DSI | IPS | 178° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
7.9inch DSI LCD | 400×1280 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
8inch DSI LCD | 800×480 | DSI | TFT | - | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
8inch DSI LCD (with cam) | 800×480 | DSI | TFT | - | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
8inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
8.8inch DSI LCD | 480×1920 | DSI | IPS | 178° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
10.1inch DSI LCD (C) | 1280×800 | DSI | IPS | 178° | 电容 | I2C | 钢化玻璃 | √ | - | - | √ | - | - |
11.9inch DSI LCD | 320×1480 | DSI | IPS | 170° | 电容 | I2C | 钢化玻璃 | - | - | - | √ | - | - |
HDMI / Type-C显示屏 | |||||||||||||
2.8inch HDMI LCD (H) | 480×640 | HDMI | IPS | 160° | 电容 | Type-C / I2C | 钢化玻璃 | √ | - | - | √ | √ | √ |
3.2inch HDMI LCD (H) | 480×800 | HDMI | IPS | 160° | - | - | - | - | - | - | √ | √ | 仅显示 |
3.4inch 800x800 LCD | 800x800 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
3.5inch HDMI LCD | 480×320 | HDMI | IPS | 160° | 电阻 | SPI | - | - | - | √ | √ | - | 仅显示 |
3.5inch HDMI LCD (E) | 640×480 | HDMI | IPS | 170° | 电容 | Type-C / I2C | 钢化玻璃 | - | - | √ | √ | √ | √ |
3.5inch 480x800 LCD | 480×800 | HDMI | IPS | 170° | 电容 | Type-C | - | - | - | - | √ | √ | √ |
4inch 720x720 LCD | 720x720 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
4inch HDMI LCD | 480×800 | HDMI | IPS | 170° | 电阻 | SPI | - | - | - | - | √ | - | 仅显示 |
4inch HDMI LCD (C) | 720×720 | HDMI | IPS | 170° | 电容 | Type-C / I2C | 钢化玻璃 | √ | - | √ | √ | √ | √ |
4inch HDMI LCD (H) | 480×800 | HDMI | IPS | 170° | 电阻 | SPI | - | - | - | √ | √ | - | 仅显示 |
4.3inch HDMI LCD (B) | 800×480 | HDMI | IPS | 160° | 电容 | USB | - | - | - | √ | √ | √ | √ |
5DP-CAPLCD-H | 1024×600 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | - | - | √ | √ | √ | √ |
5DP-CAPLCD-B | 1024×600 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | - | √ | √ | √ | √ |
5DP-CAPLCD-G | 1024×600 | HDMI | IPS | 178° | 电阻 | Type-C | 钢化玻璃 | - | - | √ | √ | √ | √ |
5inch HDMI LCD | 800×480 | HDMI | TFT | - | 电阻 | SPI | - | - | - | - | √ | - | - |
5inch HDMI LCD (带外壳) | 800×480 | HDMI | TFT | - | 电阻 | SPI | - | - | - | - | √ | - | - |
5inch HDMI LCD (B) | 800×480 | HDMI | TFT | 160 | 电阻 | USB | - | - | - | - | √ | - | √ |
5inch HDMI LCD (B) (带外壳) | 800×480 | HDMI | TFT | - | 电阻 | USB | - | - | - | - | √ | - | √ |
5inch HDMI LCD (G) | 800×480 | HDMI/VGA | TFT | - | 电阻 | USB | - | - | - | √ | √ | - | √ |
5inch HDMI LCD (H) | 800×480 | HDMI/VGA | TFT | - | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
5inch HDMI LCD (H) V4 | 800×480 | HDMI | TFT | - | 电容 | USB | 钢化玻璃 | - | - | - | √ | - | √ |
5inch HDMI AMOLED | 960×544 | HDMI | AMOLED | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
5inch 1080x1080 LCD | 1080×1080 | HDMI | IPS | 160° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
5inch 720x1280 LCD | 720×1280 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | - | √ | √ | √ |
5.5inch HDMI AMOLED | 1080×1920 | HDMI | AMOLED | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
5.5inch HDMI AMOLED (with case A) | 1080×1920 | HDMI | AMOLED | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | - | - |
5.5inch 1440x2560 LCD | 1440×2560 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | - | √ |
5.5inch 1440x2560 LCD (with case A) | 1440×2560 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | - | - |
6.25inch 720x1560 LCD | 720×1560 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | - | √ | √ | √ |
7EP-CAPLCD | 1280×800 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
7EP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
7inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | 电阻 | SPI | - | - | - | - | √ | - | 仅显示 |
7inch HDMI LCD (B) | 800×480 | HDMI | TFT | - | 电容 | USB | - | - | - | - | √ | - | √ |
7inch HDMI LCD (B) (带外壳) | 800×480 | HDMI | TFT | - | 电容 | USB | - | - | - | - | √ | - | √ |
7inch HDMI LCD (C) | 1024×600 | HDMI | IPS | 170° | 电容 | USB | - | - | - | - | √ | - | √ |
7inch HDMI LCD (C) (带外壳) | 1024×600 | HDMI | IPS | 170° | 电容 | USB | - | - | - | - | √ | - | √ |
7inch HDMI LCD (H) | 1024×600 | HDMI/VGA | IPS | 170° | 电容 | USB | - | - | - | √ | √ | √ | √ |
7inch HDMI LCD (H) (带外壳) | 1024×600 | HDMI/VGA | IPS | 170° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
7HP-CAPQLED | 1024×600 | HDMI | IPS(QLED) | 170° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
7.9inch HDMI LCD | 400×1280 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
7.9inch Side Monitor | 400×1280 | HDMI | IPS | 170° | - | - | 钢化玻璃 | - | √ | - | √ | √ | √ |
7.9inch Touch Monitor | 400×1280 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | - | √ | - | √ | √ | √ |
8DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
8HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
8inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | - | - | √ | √ | √ | √ |
8inch 1536x2048 LCD | 1536×2048 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
8.8inch Side Monitor | 480×1920 | HDMI | IPS | 170° | - | - | - | - | √ | - | √ | √ | 仅显示 |
9HP-CAPQLED-B | 1280×720 | HDMI | IPS(QLED) | 178° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
9.3inch 1600x600 LCD | 1600×600 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | - | √ | √ | √ | √ |
9.7inch 768x1024 LCD | 768×1024 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | - | - | √ | √ | √ | √ |
10.1inch HDMI LCD | 1024×600 | HDMI | IPS | 170° | 电阻 | SPI | - | - | - | - | √ | - | 仅显示 |
10.1inch HDMI LCD (B) (带外壳) | 1280×800 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | - | - | - | √ | - | √ |
10.1inch HDMI LCD (E) | 1024×600 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
10.1inch HDMI LCD (G) (带外壳) | 1920×1200 | HDMI | IPS | 160° | 电容 | USB | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
10.1inch HDMI LCD (H) (带外壳) | 1024×600 | HDMI/VGA | TFT | - | 电容 | USB | - | - | - | - | √ | √ | √ |
10.1inch HDMI LCD (F) (带外壳) | 1024×600 | HDMI/VGA | IPS | 170° | 电容 | USB | 钢化玻璃 | - | √ | - | √ | √ | √ |
10.1EP-CAPLCD | 1920×1200 | HDMI | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
10.1DP-CAPLCD | 1280×800 | HDMI | IPS | 178° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
10.1HP-CAPQLED | 1280×720 | HDMI | IPS(QLED) | 170° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
10.1HP-CAPLCD Monitor | 1280×800 | HDMI/Type-C | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
10.4HP-CAPQLED | 1600×720 | HDMI | IPS(QLED) | 178° | 电容 | Type-C | 钢化玻璃 | √ | - | √ | √ | √ | √ |
10.5inch HDMI AMOLED | 2560×1600 | HDMI | AMOLED | 160° | 电容 | USB | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
11.6inch 1768x828 LCD | 1768×828 | HDMI/Type-C | IPS | 178° | 电容 | Type-C | In-Cell | - | - | √ | √ | √ | √ |
11.6inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
11.6inch HDMI LCD (H) (带外壳) | 1920×1080 | HDMI/VGA | IPS | 178° | 电容 | USB | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
11.9inch HDMI LCD | 320×1480 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
11.9inch Side Monitor | 320×1480 | HDMI | IPS | 170° | - | - | 钢化玻璃 | - | √ | - | √ | √ | √ |
11.9inch Touch Monitor | 320×1480 | HDMI | IPS | 170° | 电容 | USB | 钢化玻璃 | - | √ | - | √ | √ | √ |

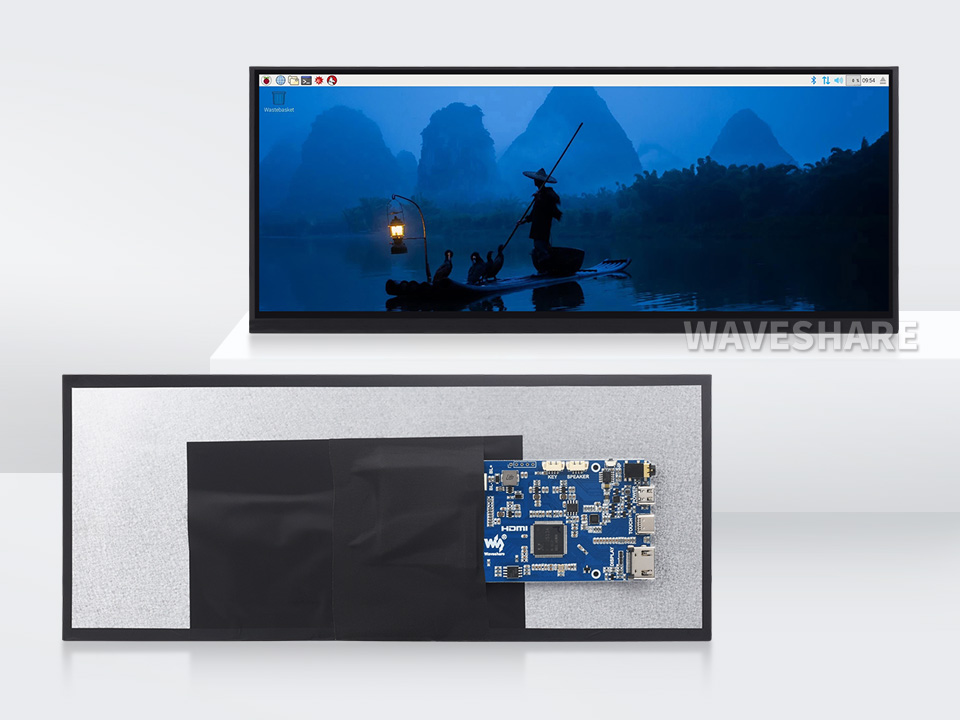

12.3inch 1920x720 LCD | 1920×720 | HDMI/Type-C | IPS | 178° | 电容 | Type-C | In-Cell | - | - | √ | √ | √ | √ |

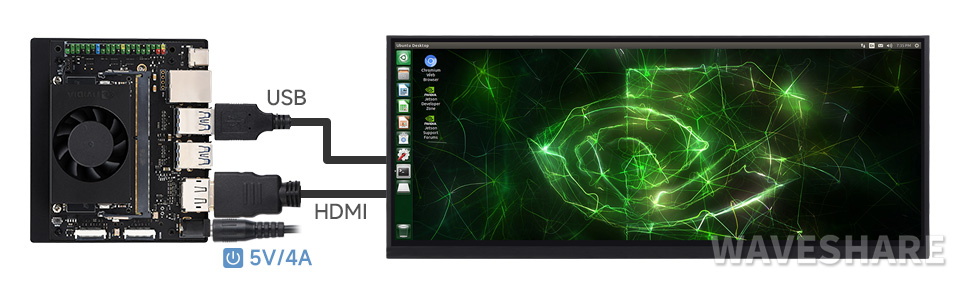

12.3inch HDMI LCD | 1920×720 | HDMI | IPS | 178° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
13.3inch HDMI LCD (H) | 1920×1080 | HDMI | IPS | 178° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (带外壳) | 1920×1080 | HDMI/VGA | IPS | 178° | 电容 | USB | 钢化玻璃 | - | √ | √ | √ | √ | √ |
13.3inch HDMI LCD (H) (带外壳) V2 | 1920×1080 | HDMI/VGA | IPS | 178° | 电容 | USB | 钢化玻璃 | - | √ | √ | √ | √ | √ |
13.3inch QHD AMOLED | 2560×1440 | HDMI/Type-C | AMOLED | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
14inch 2160x1440 LCD | 2160×1440 | HDMI/Type-C/DP | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | - | √ | √ | √ | √ |
15.6inch Dual Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | - | - | - | - | √ | √ | √ | √ | √ |
15.6inch HDMI LCD | 1920×1080 | HDMI | IPS | 178° | 电容 | USB | 钢化玻璃 | - | - | √ | √ | √ | √ |
15.6inch HDMI LCD (H) (带外壳) | 1920×1080 | HDMI/VGA | IPS | 178° | 电容 | USB | 钢化玻璃 | - | √ | √ | √ | √ | √ |
15.6inch FHD Monitor | 1920×1080 | HDMI/Type-C | IPS | 178° | 电容 | Type-C / USB | 钢化玻璃 | - | √ | √ | √ | √ | √ |
15.6HP-CAPQLED | 1920×1080 | HDMI | IPS(QLED) | 178° | 电容 | USB | 钢化玻璃 | √ | - | √ | √ | √ | √ |
15.6inch QLED Monitor | 1920×1080 | HDMI | IPS(QLED) | 178° | 电容 | Type-C | 钢化玻璃 | √ | √ | √ | √ | √ | √ |
18.5inch FHD LCD | 1080×1920 | HDMI/Type-C | IPS | 178° | 电容 | Type-C | 钢化玻璃 | √ | - | √ | √ | √ | √ |
21.5inch FHD LCD | 1080×1920 | HDMI | IPS | 170° | 电容 | Type-C | 钢化玻璃 | √ | - | √ | √ | √ | √ |
21.5inch FHD Monitor | 1080×1920 | HDMI | IPS | 170° | 电容 | Type-C | 钢化玻璃 | √ | √ | - | √ | √ | √ |
